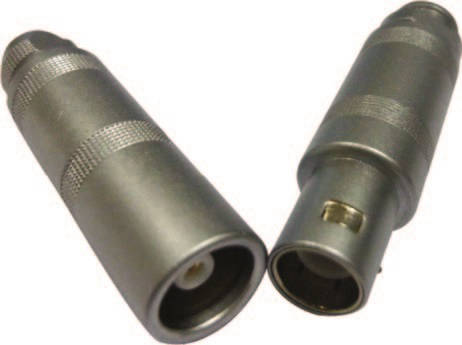

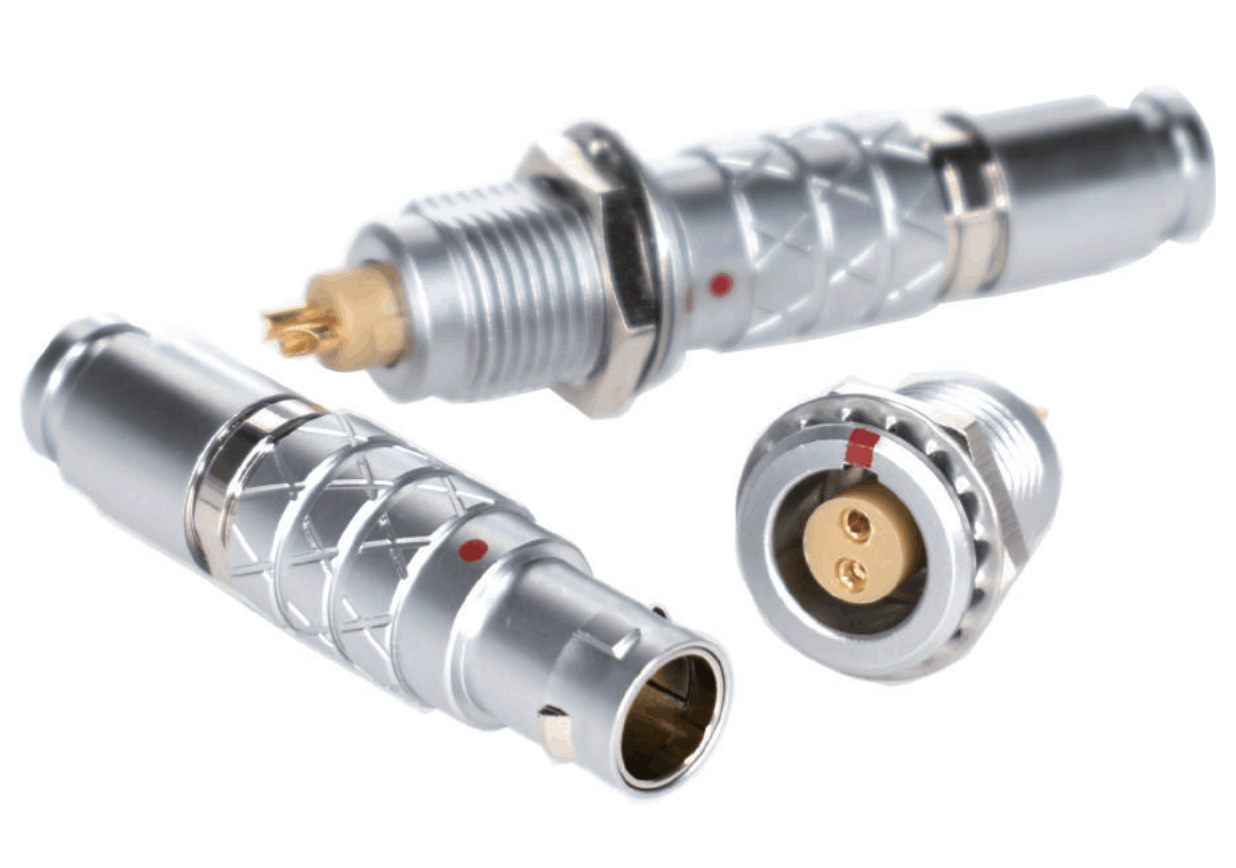

Circular connectors

Push-pull connectors with the following main features:

1. Security of the push-pull self-latching structure

2. Solder or PCB contacts (straight and elbow)

3. High-density installation for saving space

4. EMC shielding with metal shells

Materials of connectors:

1. Shell: copper alloy (stainless steel is used in special occasions) plated with Nickel or Chrome;

2. Contacts: copper alloy plated with gold;

3. Insulator: PA, PSU,PPSU, PEEK.

Product Ordering Information

Size (S400S, S40S, S41S,…)

Type

Contacts (250, 01, 02,…)

Type of cable collet and sleeve

Cable diameter

Plug
Receptacle

S400S
S400S

TT
TZ

250
250

T
T

27

For example

S400STT250T27

S400S Size straight plug, 250 type of contacts, apply to cable with diameter about 2.7mm, cable collet fix nut

S42SHT05N50

S42S Size straight plug, 5 contacts, apply to cable with diameter about 5.0mm, cable collet fix nut with black sleeve

S400STZ250T

S400S Size straight receptacle, 250 type of contacts

Contact arrangement

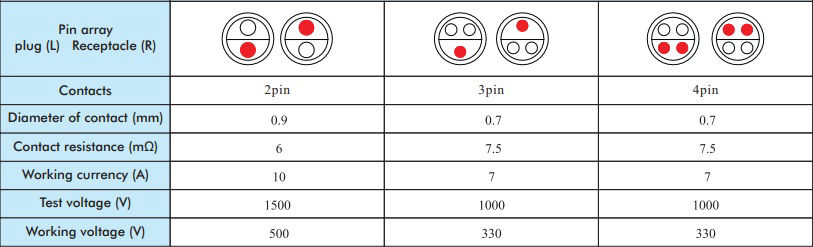

S40S size

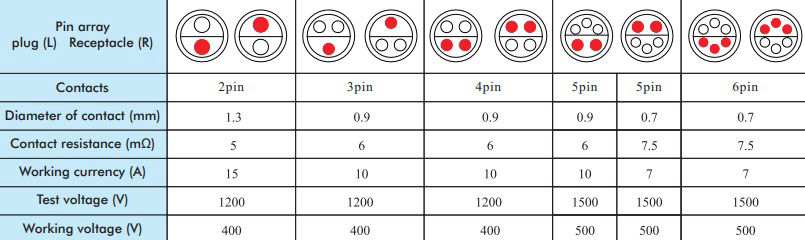

S41S size
